TEMPERATURE MEASUREMENT MACHINE

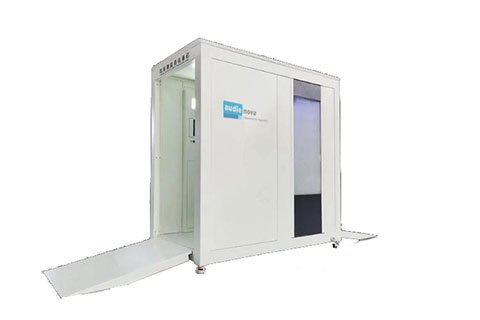

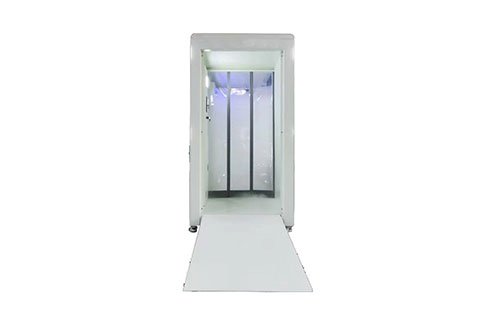

INTELLIGENT TEMPERATURE MEASUREMENT AND DISINFECTANT CHANNEL K02A

Following the principle of ergonimics when designing its form,it is convenient to measure and disinfect children, the elderly, the disabled, wheelchairs and pets. Adopting fully automatic intelligent control in its design, it greatly reduces manual operation and monitoring workload thus decreasing security pressure.

Human Body Induction Mode : human body infrared induction
Body Temperature Sensing Mode : German HEIMANN thermal imaging
Body Temperature Collection Distance : 30 to 100cm
Body Temperature Collection Accuracy : 0.2 'C
Body Temperature Display Panel : 5-inch HD touch screen
Body Temperature Detection Output : The equipment will give an alarm
automatically upon abnormal temperature

APPLICATION CHARACTERISTICS

1.Facial Recognition System
It can distinguish visitors from internal personnel and record them, and it supports LAN storage and cloud storage.
2. Automatic Induction Spraying Function
The equipment is equipped with a microwave sensor which can sense moving objects. When entry of people is detected, mist-making machine and disinfecting UV lamp are started automatically to spray atomized disinfectant into the disinfection channel.
3. Spray from Low Angle of Attack Avoid Stimulating Human Facial Organs
With respect to mist outlet inside the disinfection channel, low angle of attack is designed, so as to avoid discomfort caused by spraying the mist on human face directly.
4. Measure Temperature of Human Body by Utilizing Infrared Thermal Imaging Technique
Give an Audible and Visual Alarm. It adopts high-accuracy thermal imaging temperature sensor, thus being able to realize non-contact measurement of body temperature quickly and reliably, effectively avoid cross infection, collect body temperature in real time and extract peak value to compare with output signal light and beep prompt. The data is collected in the background.
5. Function of Being Movable
The equipment has two sets of universal brake casters and two sets of directional brake casters, and slopes on both ends are fodable. Due to the above mentioned advantages, the equipment can be moved conveniently and deployed quickly at the same time of reducing storage space. Tyres are made from nylon tread, thus being able to adapt to various road conditions
6. Characteristic of Quick Deployment
The equipment adopts an alternating current of 220V, and its power consumption is less than 1000W. It is easy to install, deploy, operate, learn and use the equipment, and the disinfectant can be filled and emptied easilly

Power : 1000 W
Power Supply : 220 V / 50 Hz (users can match it to corresponding
electrical components in the light of local mains voltage)
Mist-exit Volume : 6 L/h (consistent mist-exit)
Ultrasonic Atomization : superfine dry mist whose particle diameter is between 3nm and 5nm
UV Sterilization : UV lamp the waveband of which is harmless to human body
Quality of Integral Machine : 600 kg
Disinfection Rate : 99.99%
